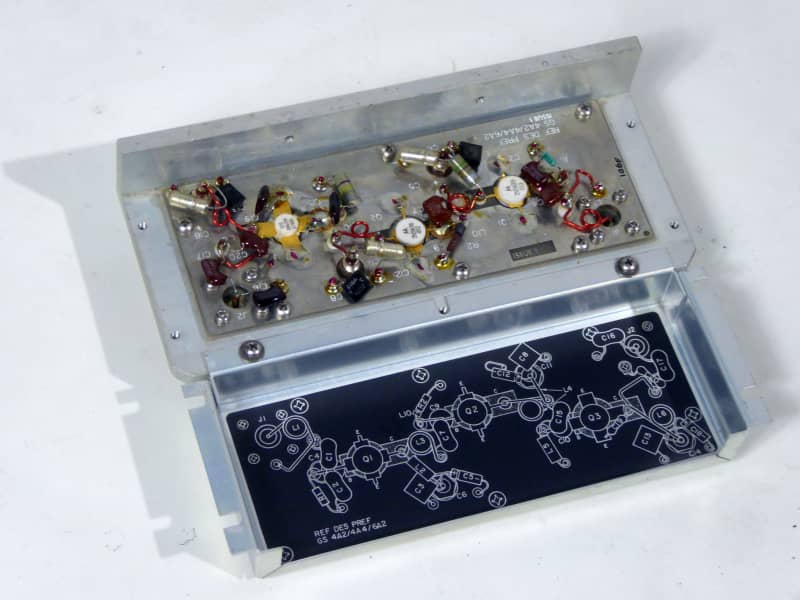

Radio frequency Printed Circuit Board with component layout image

This was a military high frequency radio circuit. Quite a nice feature to have the component layout diagram printed into the protective cover which has been reversed so you can see both the circuit & the diagram simultaneously.

Prop ID: 7916

Width: 18 cm

Height: 14 cm

Depth: 5 cm

Age: 1980s-1990s
