Practical large screened laboratory X-Y displays

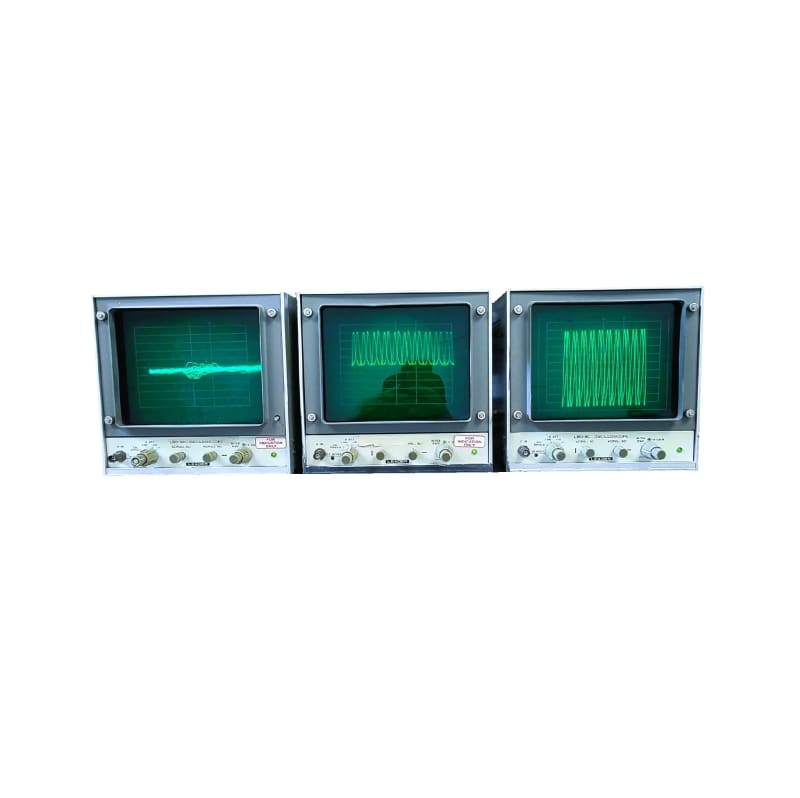

Technically not the same as our oscilloscopes as these have much larger screens & the display must be driven with both a vertical & a horizontal signal. Without any signal connected, these will simply display an uninteresting dot. Our wobble box 2228 or 3482 will produce the neccessary signals to produce the moving shapes shown in the pictures. Please note that there are 3 x separate items in the picture priced individually.

Prop ID: 2639

Width: 20 cm

Height: 20 cm

Depth: 20 cm

Age: 1980s-2000s
